Kadee #156
Whisker(R) Scale Self-Centering Knuckle Couplers - Kit - Magne-Matic

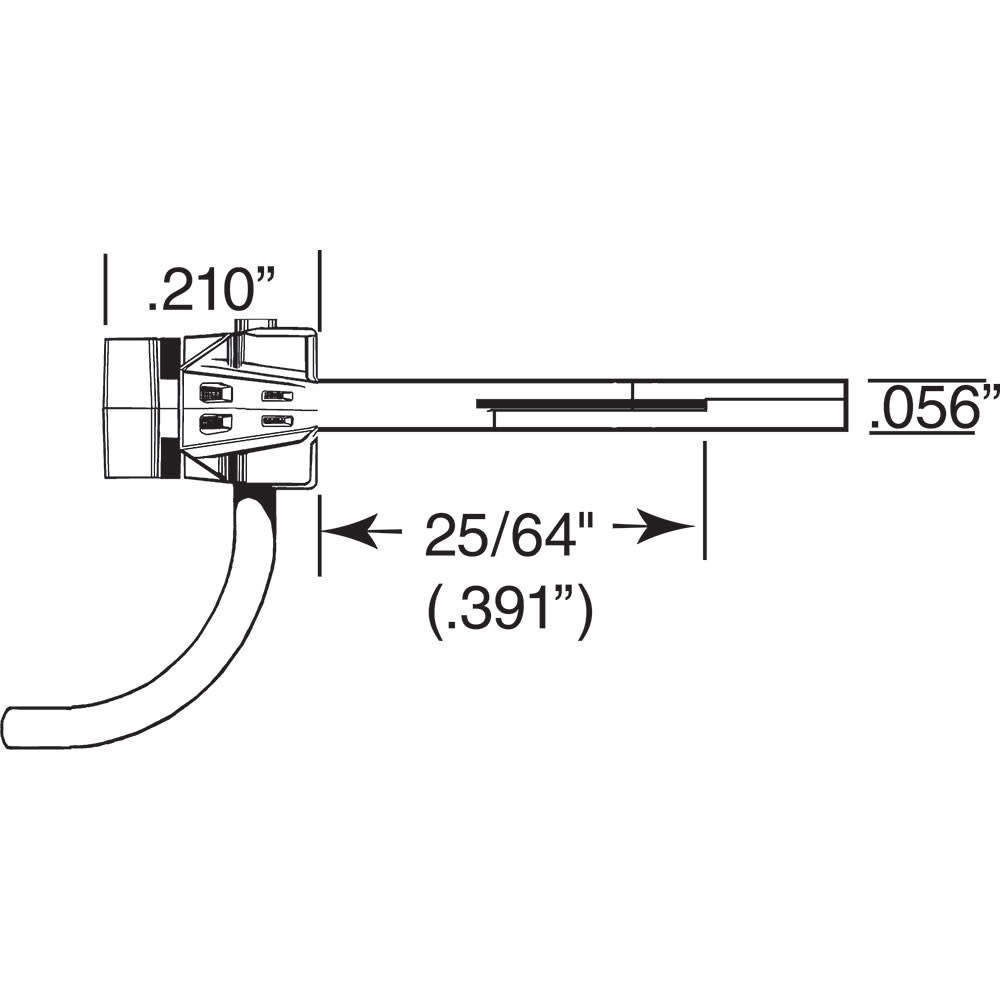

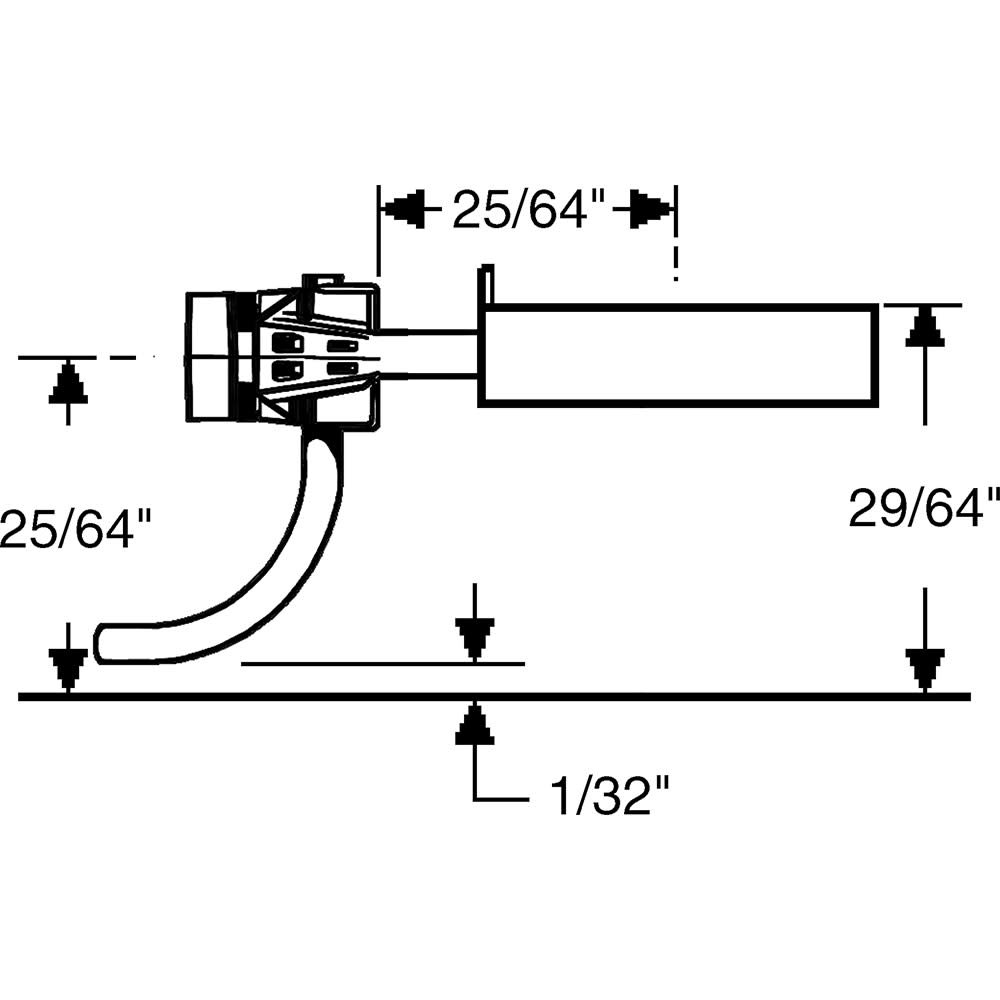

Long 25/64" Centerset Shank w/#242 Draft Gear Boxes 2 Pair
| Quantity: | 1 |

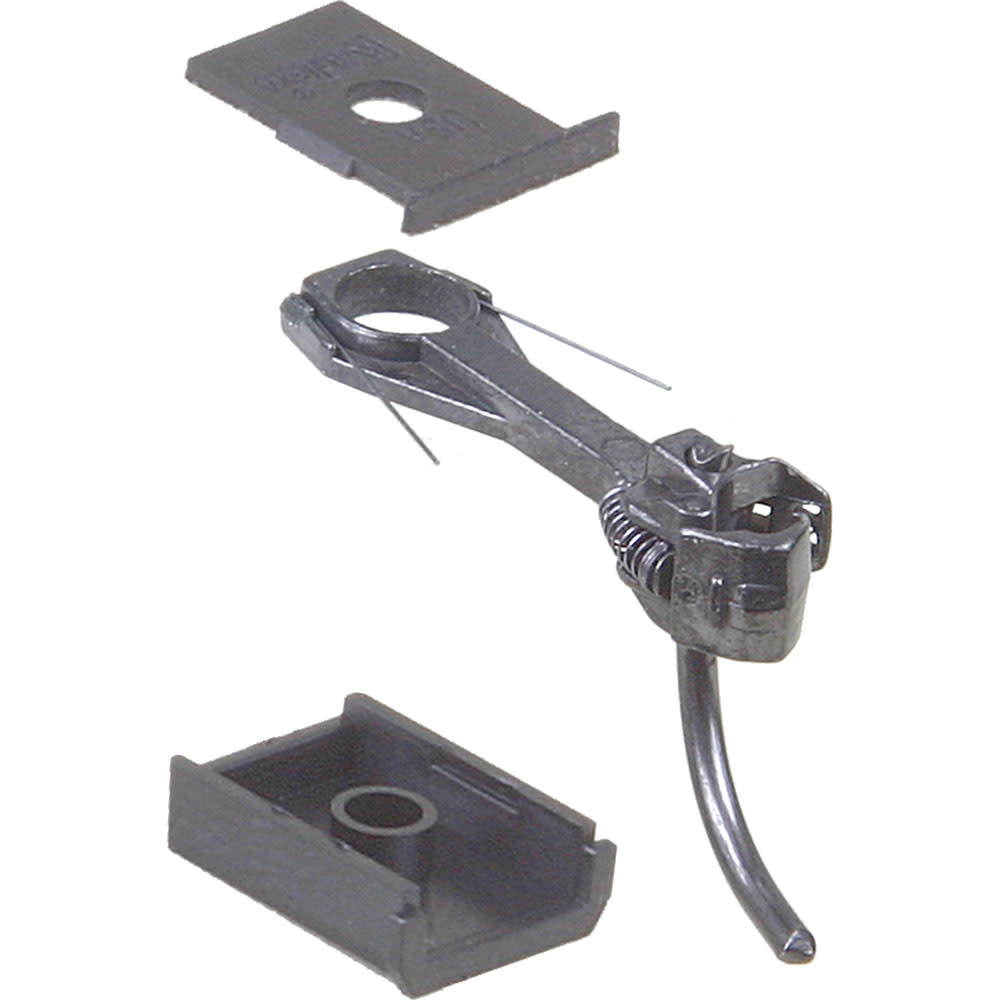

The #156 "Scale" All Metal Self-Centering WHISKER® Coupler features a "Scale" Metal Coupler (a smaller head coupler which is more to scale and is patterned after the type 'E" couplers) & Metal WHISKER® Centering Spring, insulated Draft Gear Box and Lid. The #156 Coupler may be mounted with the supplied #242 draft gear box, other Kadee® HO-Scale draft gear box shown below or with the Manufacturers cast-on coupler pockets. The coupler will couple and uncouple with other Kadee® HO and HOn3 couplers. The coupler has the same shank length as the #26, 36 or 46 coupler which will allow the modeler to remove the existing #26, 36 or 46 coupler and replace with the new smaller coupler. The #156 coupler is made of the same metal as the #46 for strength and rigidity.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox.
